LEMON
SINGLE COIL
Sound Profile ?
Low vintage output with exceptionally fast transient response, sparkling articulation and highly expressive picking dynamics.
Bass
4.5
Mids
5
Treble
9.5
Pickup Character
Extremely open and ultra-responsive low-wind single coil with shimmering top-end clarity, airy harmonics and beautifully elastic dynamics. The combination of low inductance, strong resonant behavior and soft AlNiCo 2 magnetics creates an exceptionally touch-sensitive and inspiring vintage voice with remarkable articulation and musical transparency.
Electrical Profile ?
Core Parameters
DCR
5,1 kΩ
Inductance
0,9 H
Capacitance
128 pF
">
Resonance Behavior
f₀
Peak
Q
No Load
6,76
-28,91
4,2
500k
6,79
-31,7
2,8
250k
6,85
-33,06
2,6
Magnetic Field ?
Polarity
South UP
1.
AlNiCo 2 / Flat pole (18,5mm)
44 mT
density
2.
AlNiCo 2 / Flat pole (18,5mm)
45 mT
density
3.
AlNiCo 2 / Flat pole (18,5mm)
43 mT
density
4.
AlNiCo 2 / Flat pole (18,5mm)
45 mT
density
5.
AlNiCo 2 / Flat pole (18,5mm)
45 mT
density
6.
AlNiCo 2 / Flat pole (18,5mm)
41 mT
density
Spread
4 mT
(min 41 / max 45)
Moderate Character
Magnet density (mT) describes the magnetic field strength at each pole and how the pickup interacts with the strings.
Different magnet types have different ranges (e.g. Alnico ~30–65 mT, Ceramic ~60–90+ mT), and some variation is normal — even within the same pickup.
Typical pole-to-pole variation is ~5–15 mT.
Spread describes this:
Lower spread → more even response
Higher spread → more character and dynamics
Slugs → smoother field
Screws → more focused response
Different magnet types have different ranges (e.g. Alnico ~30–65 mT, Ceramic ~60–90+ mT), and some variation is normal — even within the same pickup.
Typical pole-to-pole variation is ~5–15 mT.
Spread describes this:
Lower spread → more even response
Higher spread → more character and dynamics
Slugs → smoother field
Screws → more focused response
Winding ?
1.
Unknown mixed (42 awg?)
5200 turns
This pickup represents an exceptionally refined low-wind single coil focused on openness, speed and harmonic transparency. Its electrical characteristics create a highly articulate and expressive voice with outstanding clarity, dynamic sensitivity and touch response.
The combination of very low 0.9 H inductance and a resonant frequency around 6.8 kHz produces exceptional upper harmonic extension, fast transient attack and remarkable note separation. The frequency response remains airy and detailed across the entire fretboard, delivering vivid articulation and impressive string definition.
A 5.1 kΩ DC resistance paired with an estimated 5200-turn mixed 42 AWG winding preserves high-frequency energy while minimizing internal damping. Notes develop with immediate clarity and retain rich harmonic complexity even during complex chord work.
A no-load Q factor of 4.2 indicates an efficient and lively resonant peak with excellent energy retention. Resonance remains stable under both 250k and 500k loading conditions, preserving the pickup’s dynamic and responsive character.
The AlNiCo 2 flat-pole magnet structure provides balanced string response, natural sustain and exceptional touch sensitivity. Combined with low 126 pF internal capacitance and full potting, the result is an open, lively and harmonically rich pickup with outstanding articulation, dynamic elasticity and beautifully transparent vintage character.
Workshop Notes

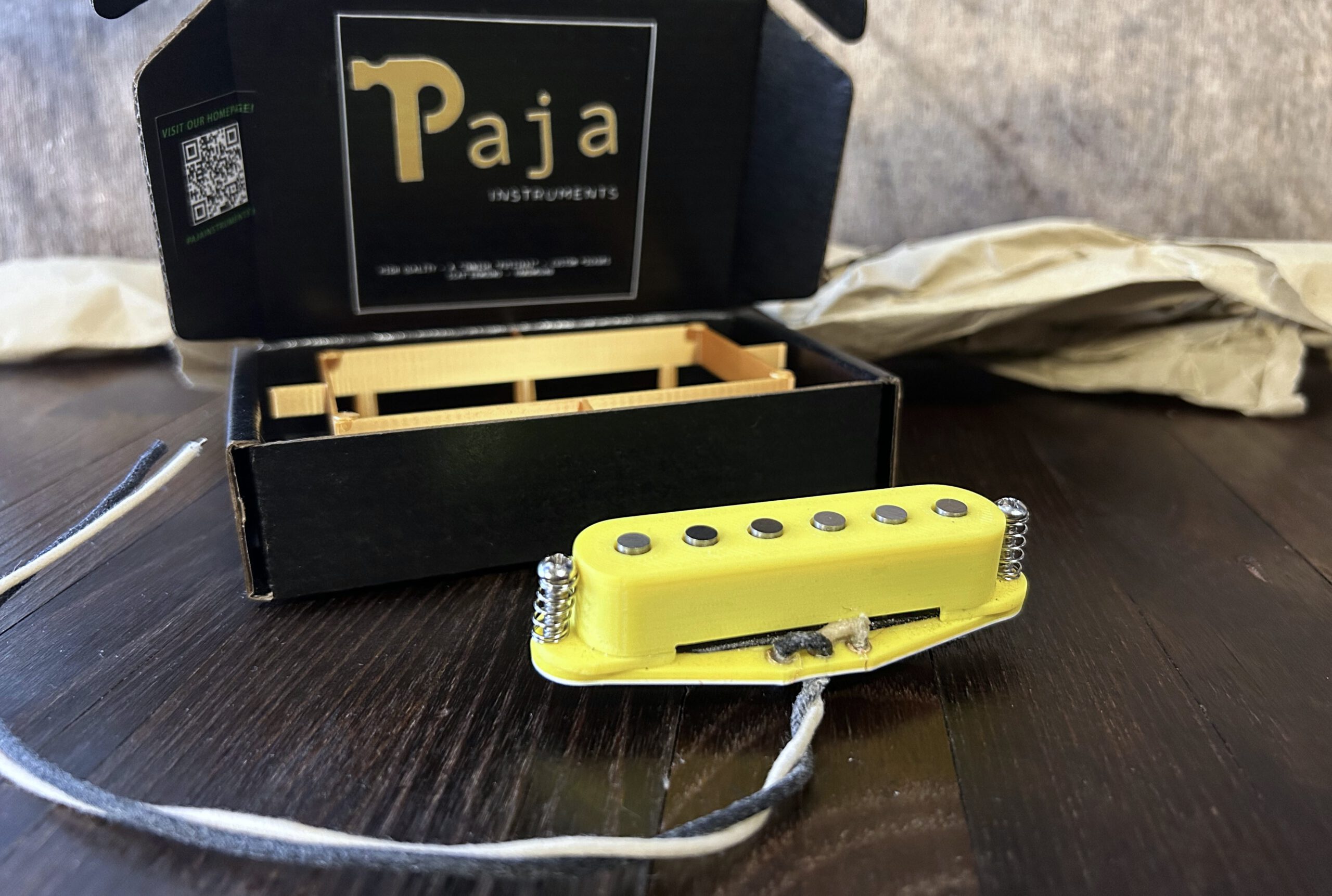

Spacing 52mm, yellow cover (3D-Printed ASA) and mounting screws (#6-32 nickel) + springs included.
